Tipper Chassis and Nameplate

Component:

Tipper Chassis and nameplate

Technology Type:

Dot Peen Marking

Requirement: Solution to identify the tippers and mark characteristics on the plates

Technical Details of chassis marking:

• Numbers of lines: 1
• Number of characters: 19
• Strength: 9
• Matrix: 5x7

Technical details of nameplates:

• Number of lines: 4
• Number of characters: 18
• Character height: 10mm
• Matrix: 9x13

Solution: Tipper manufacturer Bennes marrel, use the Easy from Connect.series to identify the tippers and mark characteristics plates.

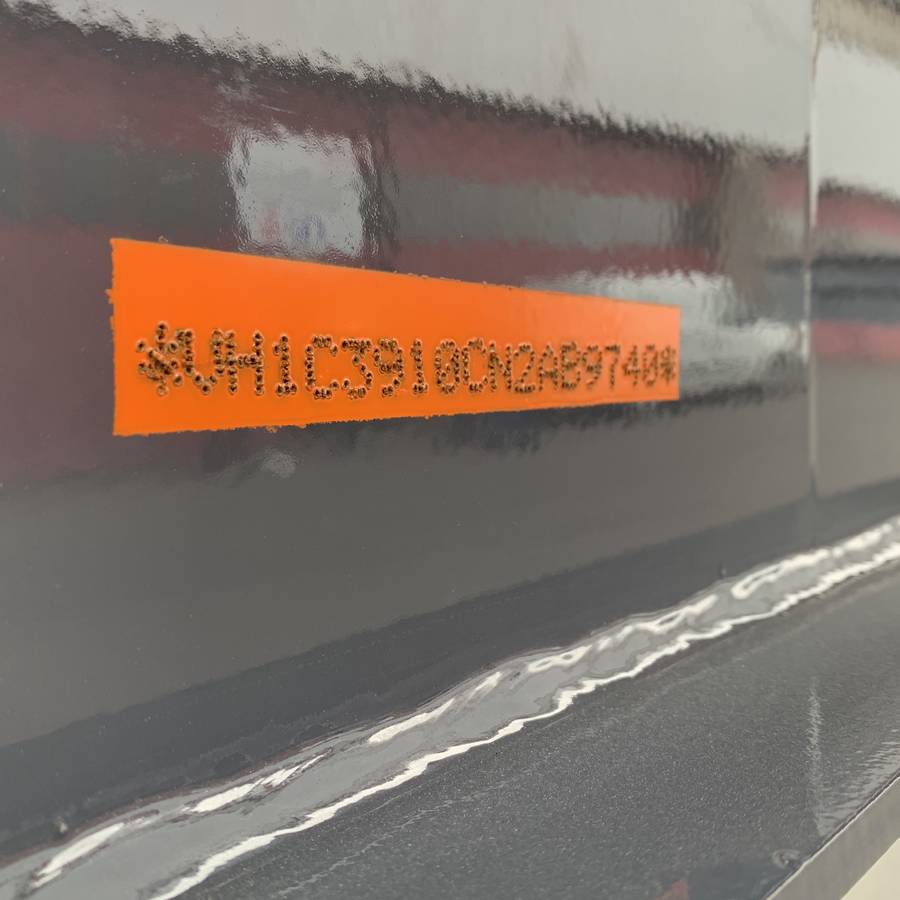

The tippers are manufactured and painted, and then the Easy machine is used to mark the vehicle identification number (VIN) on the chassis of each tipper. A second paint job in a different colour is then added to the marking area to make the VIN number stand out.

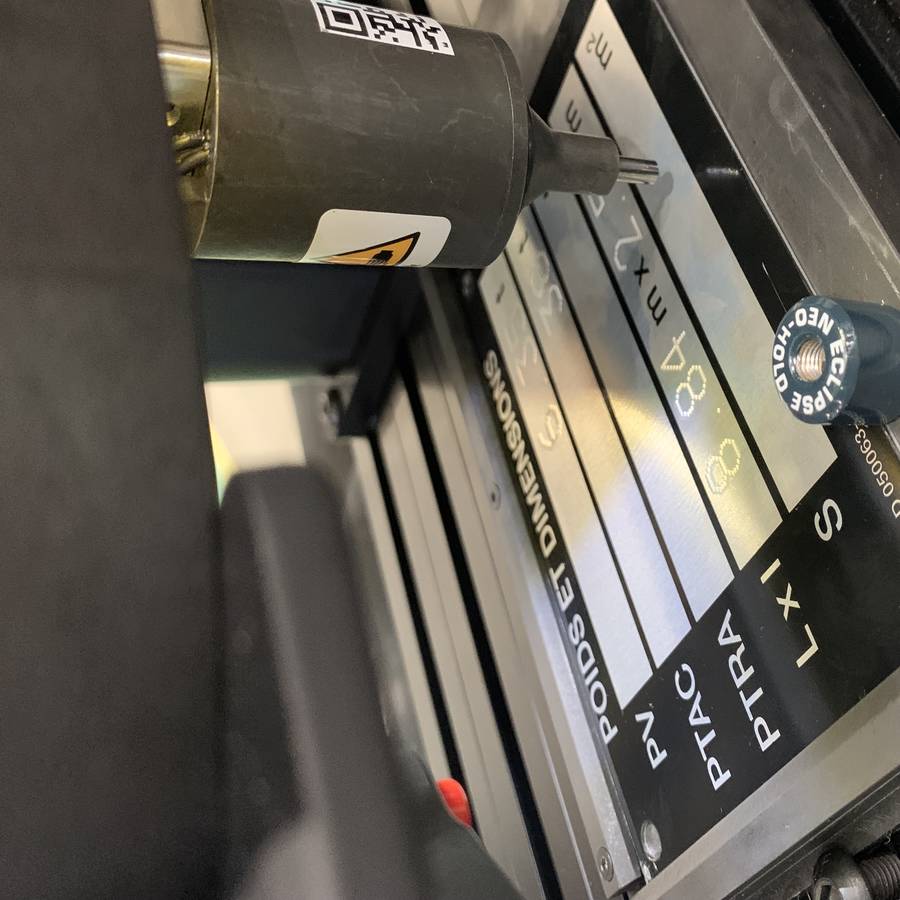

They also use a Multi4 bench that allow the marking of two company plates in order to provide information on the vehicle such as the model, the year of manufacture or the dimensions. Once the markings have been made, the plates are fixed to the chassis of the tipper, to the left of the VIN number marking.
